MPM vs FLIP MPM has the same data structure with particles and background grids
MPM and FLIP vs PBD ( Vellum Grains ) PBD uses discrete geometry (ie tracking the position of all grains) MPM and FLIP uses samples where points are used to sample and track information of a continous material
MPM vs FEM MPM supports solids so it will support both elastic and plastic deformation Fractures in MPM will look more organic than tets ( FEM )
Two-way coupling Solids can interact with liquids and vice-versa
MPM is very good at keeping large chunks of material together
Deformation Gradient F 3x3 Matrix
F = Fp * Fe
F represents the local deformation
Fp - the plastic deformation Fe - the elastic deformation
In Houdini only Fe is maintained because the Fp will update the rest position of the material, so there is no reason to track Fp. So in Houdini F is equal to Fe
The advantage of a 3x3 matrix is that it can capture the rotation scaling and shear. Can also be compressed into a vector4 quaternion if only orient is needed
Stretching and compression is from the determinant J
J = Jp * Je
In Houdini Jp and Je is precomputed for you.
Determinant of a Matrix
The determinant of a identity matrix is equal to 1. Which means that any other value other than 1 means that the transformation is either under compression or being stretched
MPM uses explicit integration, which means it may require a lot of substeps. Great for accurate collisions and friction
Speed stiffness and resolution will influence the amount of substeps that you need. Two parameters CFL and Material Conditions And it supports dynamic substeps with Min and Max limits
CFL Condition

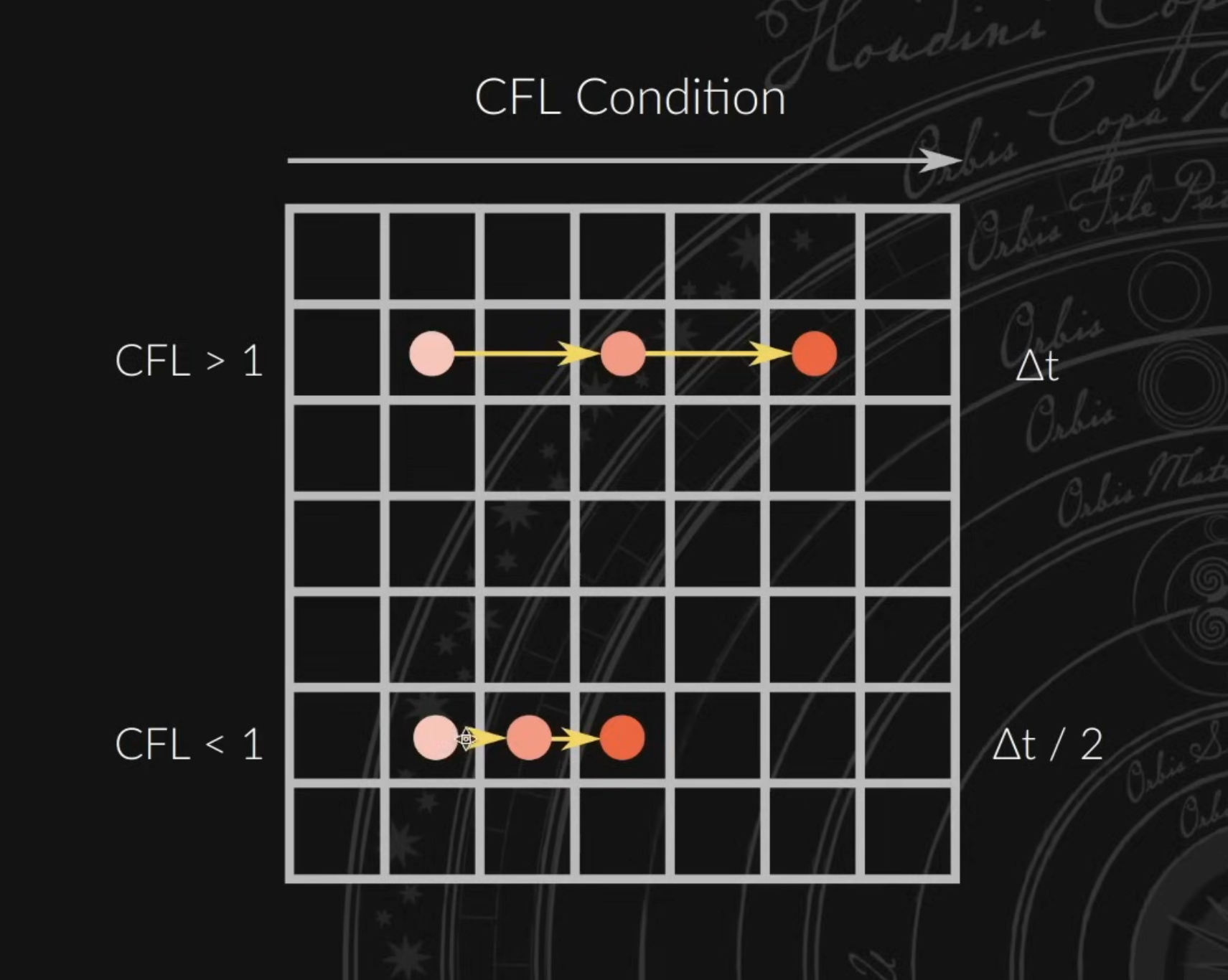

The CFL Condition is a limit on the amount of voxels a particle is allowed to travel in 1 timestep. With a CFL condition above 1 the particle is allowed to travel more than 1 voxel which creates instability.
Material Condition

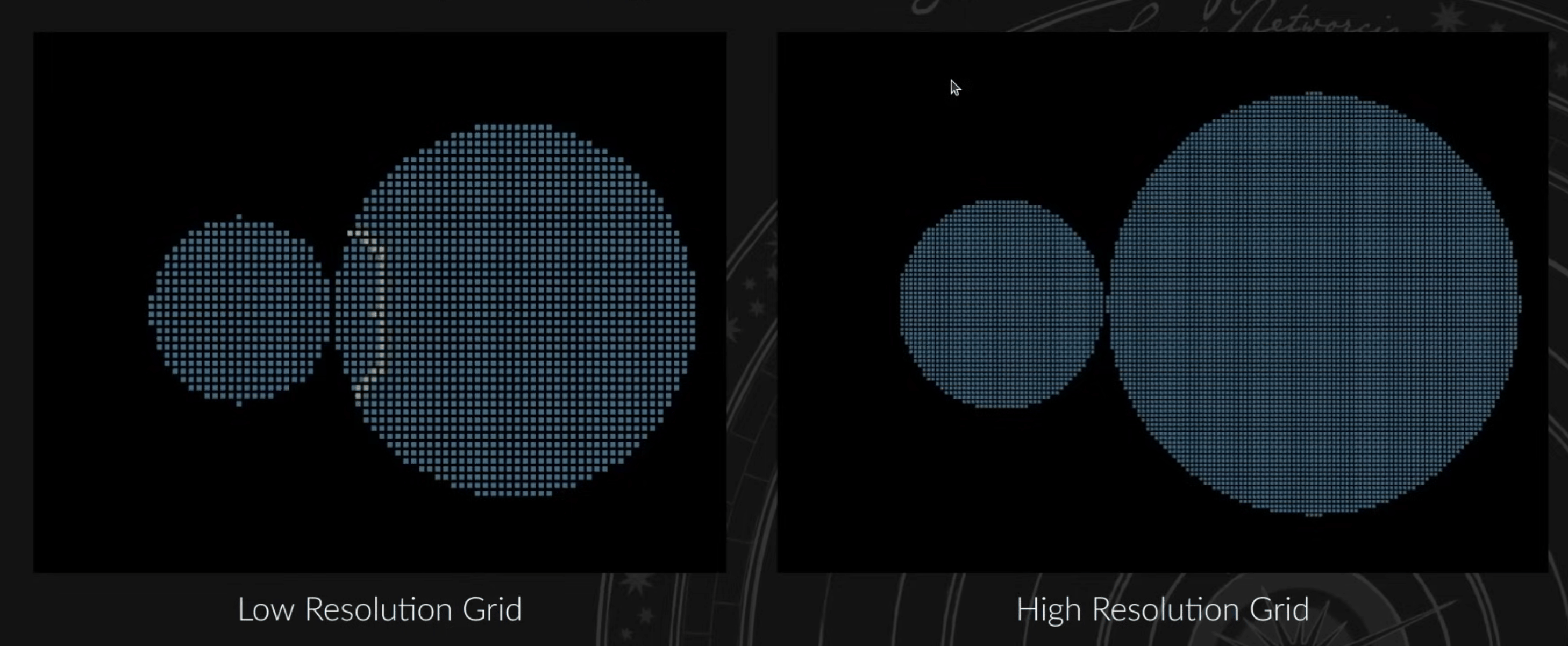

Material Condition sets how fast the impulse wave travels through an object by setting the substeps appropriately. This means that a object with twice the resolution requires twice the number of substeps to have the impulse propagate at the same speed.!
At high amounts of force, F can sometimes get inverted which causes instability. Having more timesteps will divide the force by smaller amounts so the solver will only allow small amounts of deformation per substep.
MPM Source
Compression Hardening → Increase the stiffness of the material as it is being compressed Volume Preservation → Makes the materials more explosive
MPM Collider
Collider Types: Static Animated (Rigid) for solid objects with a rigid transformation Animated (Deforming) for deforming objects eg; character animation, bending, organic animation
Variable Friction
MPM does not support a collider having variable friction on 1 singular mesh so it is necessary to decompose a collider into multiple parts in order to have multiple friction values
MPM Container
MPM Solver
The Global Substeps is the substeps of the DOP and is not indicative of the number of substeps the MPM solver actually runs. The main reason you would increase this global substeps if there is stepping in the sourcing from sources that are moving very quickly, or to evaluate nodes inside the dive target more than once.
Deformation Gradient F is not output by default to save disk space.
